NL12876BC26-25 NEC LCD Display Panel , NEC Industrial Display Landscape Type

N&S ELECTRONIC CO., LIMITED
Contact Now

NL12876BC26-25 NEC LCD Display Panel , NEC Industrial Display Landscape Type

Brand Name : NEC

Model Number : NL12876BC26-25

Certification : ISO9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 1-3 Working Days

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Supply Ability : 500PCS/DAY

Active Area : 334.08×200.45 mm

Outline : 358×226 mm

Contrast Ratio : 700:1 (Typ.)

Brightness : 470 cd/m² (Typ.)

Contact Now

NL12876BC26-25 NEC LCD Panel 15.3 inch LCM 1280×768 470 700:1 16.7M CCFL LVDS

NL12876BC26-25 Information

Panel Brand : NEC
Panel Model : NL12876BC26-25
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 15.3 inch
Resolution : 1280(RGB)×768 , WXGA
Display Mode : SA-SFT, Normally Black, Transmissive
Active Area : 334.08×200.45 mm
Outline : 358×226 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 470 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 40%
Response Time : 14/11 (Typ.)(Tr/Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL Without Driver
Signal Interface : LVDS (1 ch, 8-bit) , 20 pins
Input Voltage : 3.3V (Typ.)

What is Our Advantage?

1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.

Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing
  4. Picked up by forward and delivered by express services.
Panel Size : 15.3 inch
Dot Resolution : 1280(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 97 PPI
Aspect Ratio : 15:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.087×0.261 mm (H×V)
Pixel Pitch : 0.261×0.261 mm (H×V)
Weight : 1.27/1.40Kgs (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 334.08×200.45 mm (H×V)
Bezel Area : 336.2×202.8 mm (H×V)
Outline Dimension : 358×226 mm (H×V)
Outline Depth : 15.8/16.8 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3)
Landscape or Portrait : Landscape type
Touch Panel : Without

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
ED097OC1 E Ink 9.7" 1200×825
ED080XC2 E Ink 8.0" 1024×768
ED080XC1 E Ink 8.0" 1024×768
ED060SC3 E Ink 6.0" 800×600
ED050SC1 E Ink 5.0" 800×600
PD035QX7 E Ink 3.5" 320×240
PW070DS6 E Ink 7.0" 480×234
P1924QC1 E Ink 2.4" 240×320

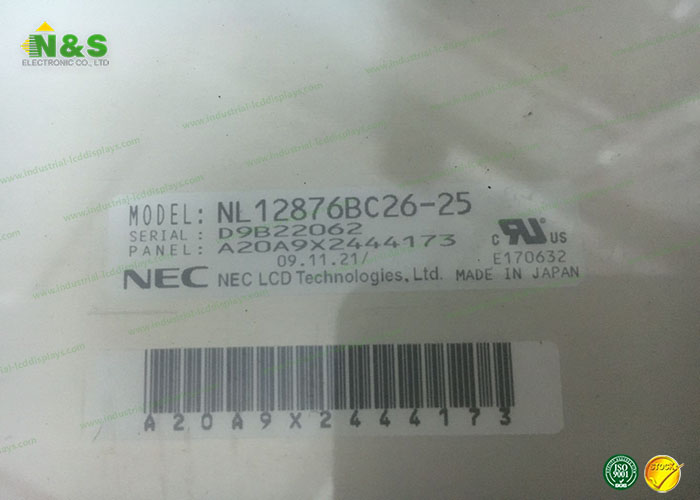

NL12876BC26-25 NEC LCD Panel Picture
